Polarizing Microscope

Advanced Tool for Inspection and Research

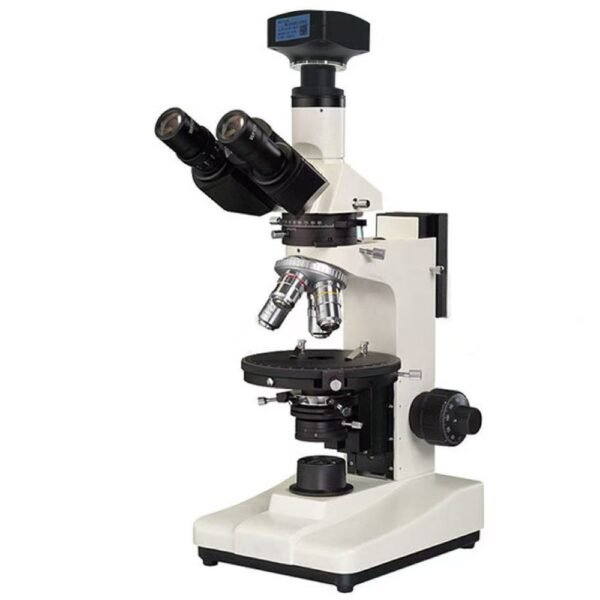

The CP35 transmitted & reflected polarizing microscope is expertly designed to identify substances with birefringence properties. From pharmacology and geology to machinery and metallurgy, it shines as a versatile tool for observing crystals, minerals, rocks, and metallographic structures. Whether you’re conducting professional research or teaching in industrial enterprises or research institutes, the CP35 ensures reliability and precision at every step.

Enhancing Optical Performance

Equipped with strain-free plan achromatic objectives and paired wide-field eyepieces, the CP35 guarantees unmatched visual clarity. Its optional illumination modes include transmitted, epi/incident, and reflected illumination to accommodate diverse observation needs. Dive deep into intricate details with a coaxial coarse & fine focusing system featuring adjustable tension, limit lock, and a fine division value of 2 μm.

Ergonomic Design and Versatile Functionality

Engineered for versatility, the CP35 comes with a 360° rotatable stage, offering vernier graduation of 6′, center-adjustability, and locking functionality. The stage diameter of Φ150 mm and vertical effective travel of 30 mm ensure generous room for specimens and ease of adjustment. Powered by a wide voltage input range of 85–265 V and a 6V 20W halogen lamp with adjustable brightness, this microscope combines robust functionality with reliable power performance.
